Reference guide

Size Chart

Use the charts below to find the right pouch size for your product. Each size links straight to the matching products in our shop. Dimensions are a guide only — because different products have different bulk densities, we recommend ordering samples to run a fill test before you commit to a size. Measurements may vary ±5mm.

Order free samples Get a quick quote

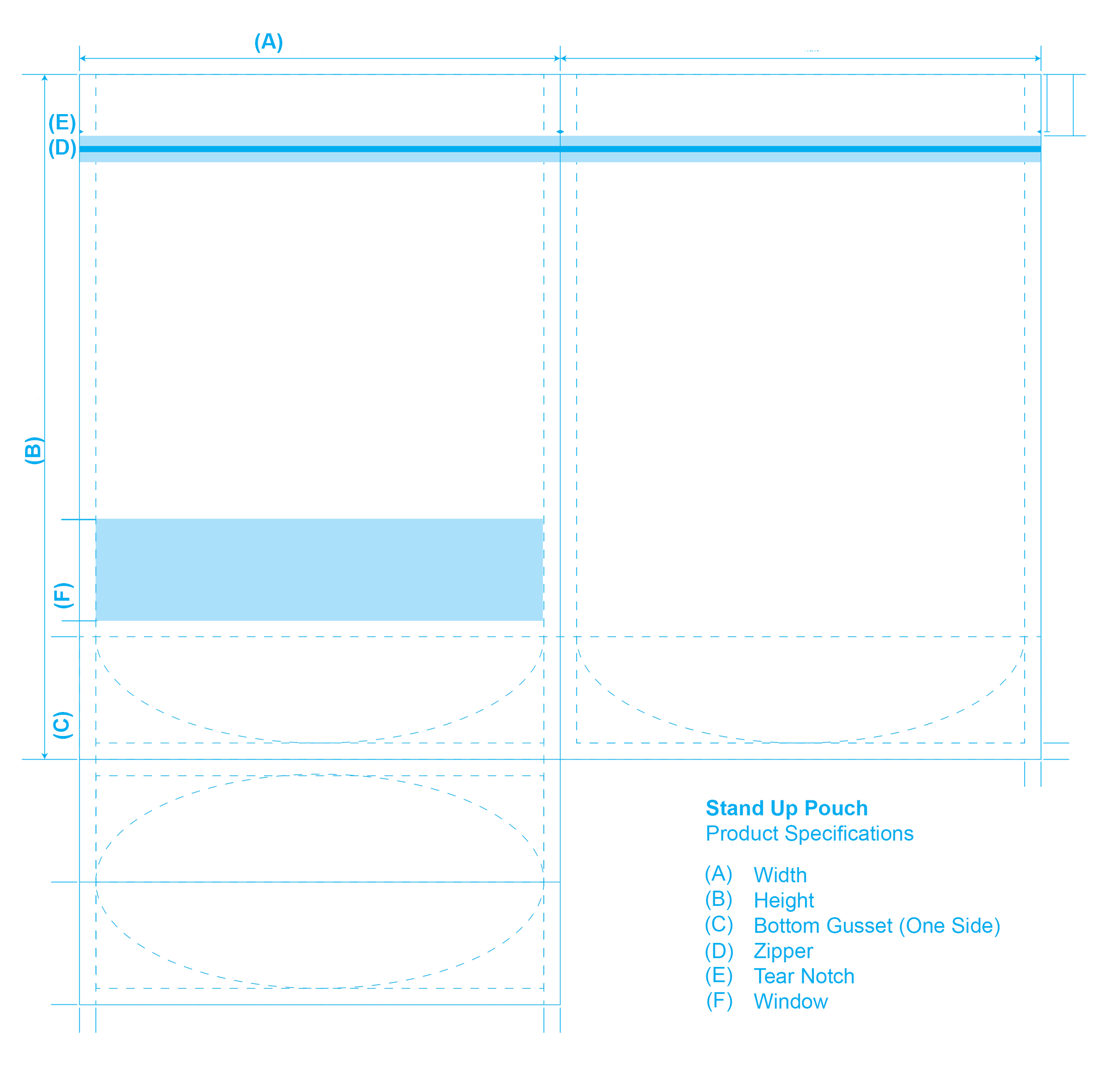

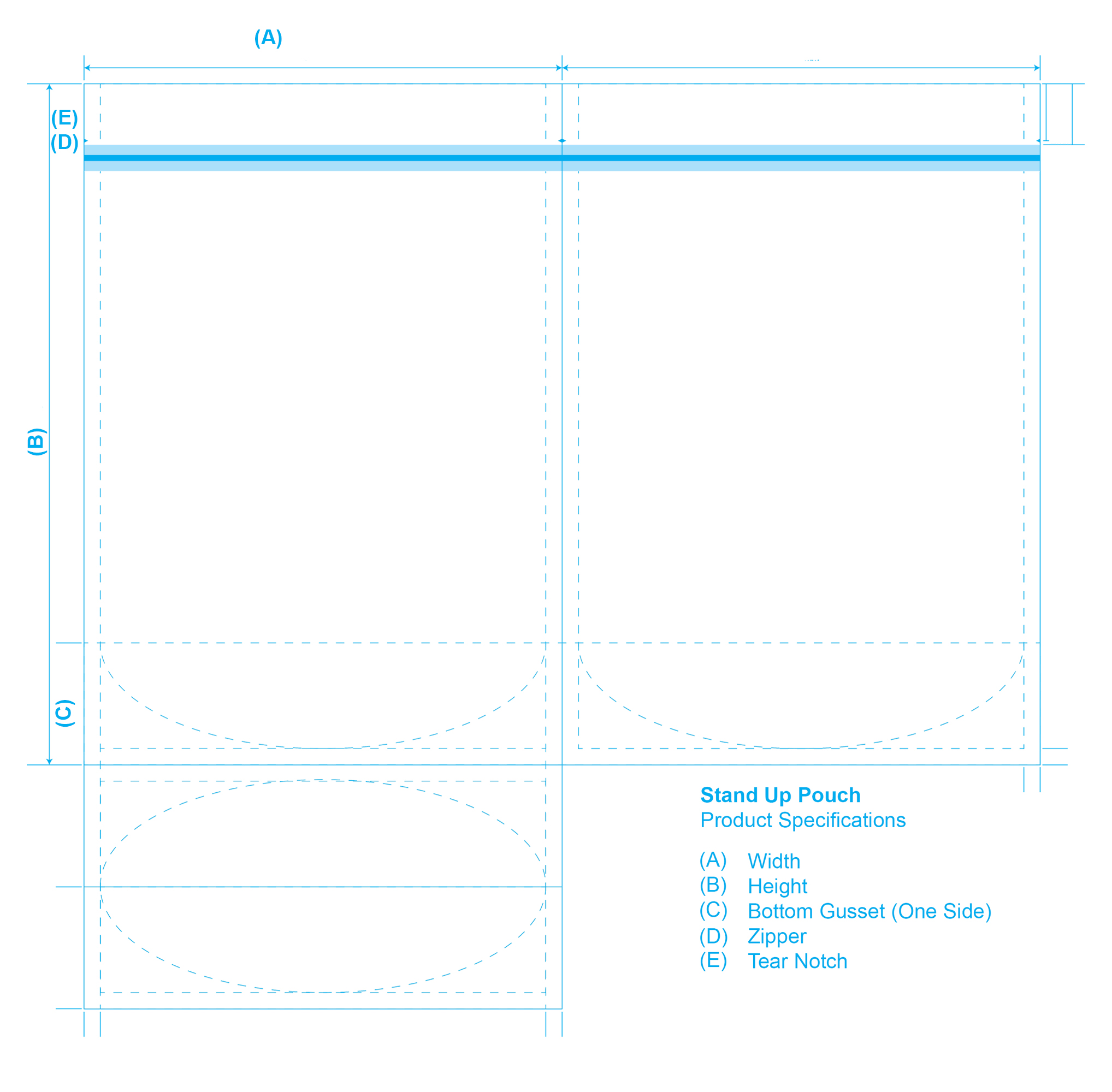

How pouch dimensions are measured — width × height, plus the bottom gusset.

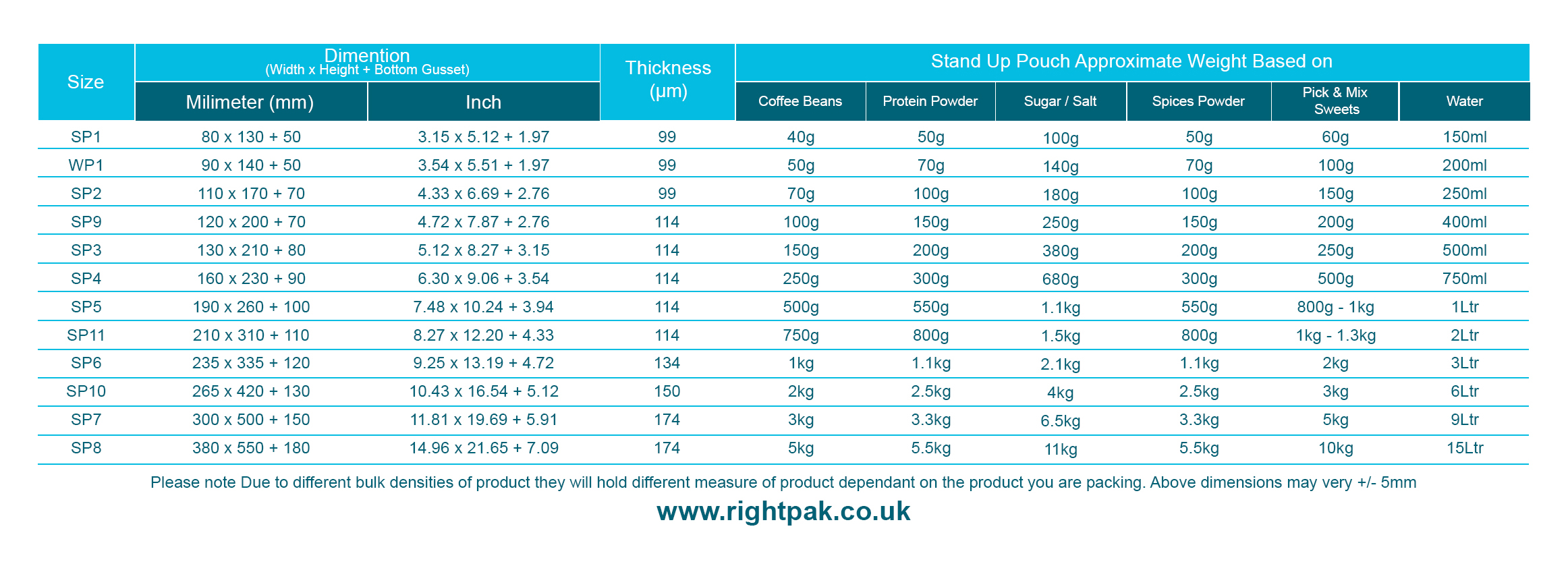

Stand Up Pouches

Shelf-standing pouches with a bottom gusset. Approximate fill based on content density — click any size to shop it.

View all Stand Up Pouches
Size Dimensions (mm)
W × H + gusset		 Dimensions (inch) Thickness
micron		 Approximate capacity based on contents
Coffee BeansProtein PowderSugar / Salt SpicesPick & MixWater
SP1 80 x 130 + 50 3.15" x 5.12" + 1.97" 99 40g 50g 100g 50g 60g 150ml
WP1 90 x 140 + 50 3.54" x 5.51" + 1.97" 99 50g 70g 140g 70g 100g 200ml
SP2 110 x 170 + 70 4.33" x 6.69" + 2.76" 99 70g 100g 180g 100g 150g 250ml
SP9 120 x 200 + 70 4.72" x 7.87" + 2.76" 114 100g 150g 250g 150g 200g 400ml
SP3 130 x 210 + 80 5.12" x 8.27" + 3.15" 114 150g 200g 380g 200g 250g 500ml
SP4 160 x 230 + 90 6.30" x 9.06" + 3.54" 114 250g 300g 680g 300g 500g 750ml
SP5 190 x 260 + 100 7.48" x 10.24" + 3.94" 114 500g 550g 1.1kg 550g 800g - 1kg 1Ltr
SP11 210 x 310 + 110 8.27" x 12.20" + 4.33" 114 750g 800g 1.5kg 800g 1kg - 1.3kg 2Ltr
SP6 235 x 335 + 120 9.25" x 13.19" + 4.72" 134 1kg 1.1kg 2.1kg 1.1kg 2kg 3Ltr
SP10 265 x 420 + 130 10.43" x 16.54" + 5.12" 150 2kg 2.5kg 4kg 2.5kg 3kg 6Ltr
SP7 300 x 500 + 150 11.81" x 19.69" + 5.91" 174 3kg 3.3kg 6.5kg 3.3kg 5kg 9Ltr
SP8 380 x 550 + 180 14.96" x 21.65" + 7.09" 174 5kg 5.5kg 11kg 5.5kg 10kg 15Ltr

Flat Bottom Bags

Structured, premium pouches with an expanding base — popular for coffee. Click a size to shop it.

View all Flat Bottom
Size Dimensions (mm)
W × H + gusset		 Dimensions (inch)
FB4 140 x 210 + 80 5.51" x 8.27" + 3.15"
FB5 150 x 260 + 90 5.91" x 10.24" + 3.54"
FB6 190 x 300 + 90 7.48" x 11.81" + 3.54"

3-Side Seal Bags

Flat packs for sachets, samples and portions. Core stock sizes shown — click a size to shop it. Bespoke sizes available on request.

View all 3-Side Seal
Dimensions (mm)
W × H		 Dimensions (inch)
60 x 80 2.36" x 3.15"
60 x 100 2.36" x 3.94"
70 x 100 2.76" x 3.94"
80 x 120 3.15" x 4.72"
100 x 150 3.94" x 5.91"
100 x 180 3.94" x 7.09"
105 x 150 4.13" x 5.91"
120 x 180 4.72" x 7.09"
120 x 195 4.72" x 7.68"
130 x 180 5.12" x 7.09"
140 x 200 5.51" x 7.87"
160 x 240 6.30" x 9.45"

Dimensions are a guide. Because products vary in bulk density, the capacities shown are approximate and measurements may vary ±5mm. We recommend ordering samples to run a fill test before committing to a size.

Not sure which size you need?

Order free samples and run a fill test, or send us your dimensions for a quick quote.
